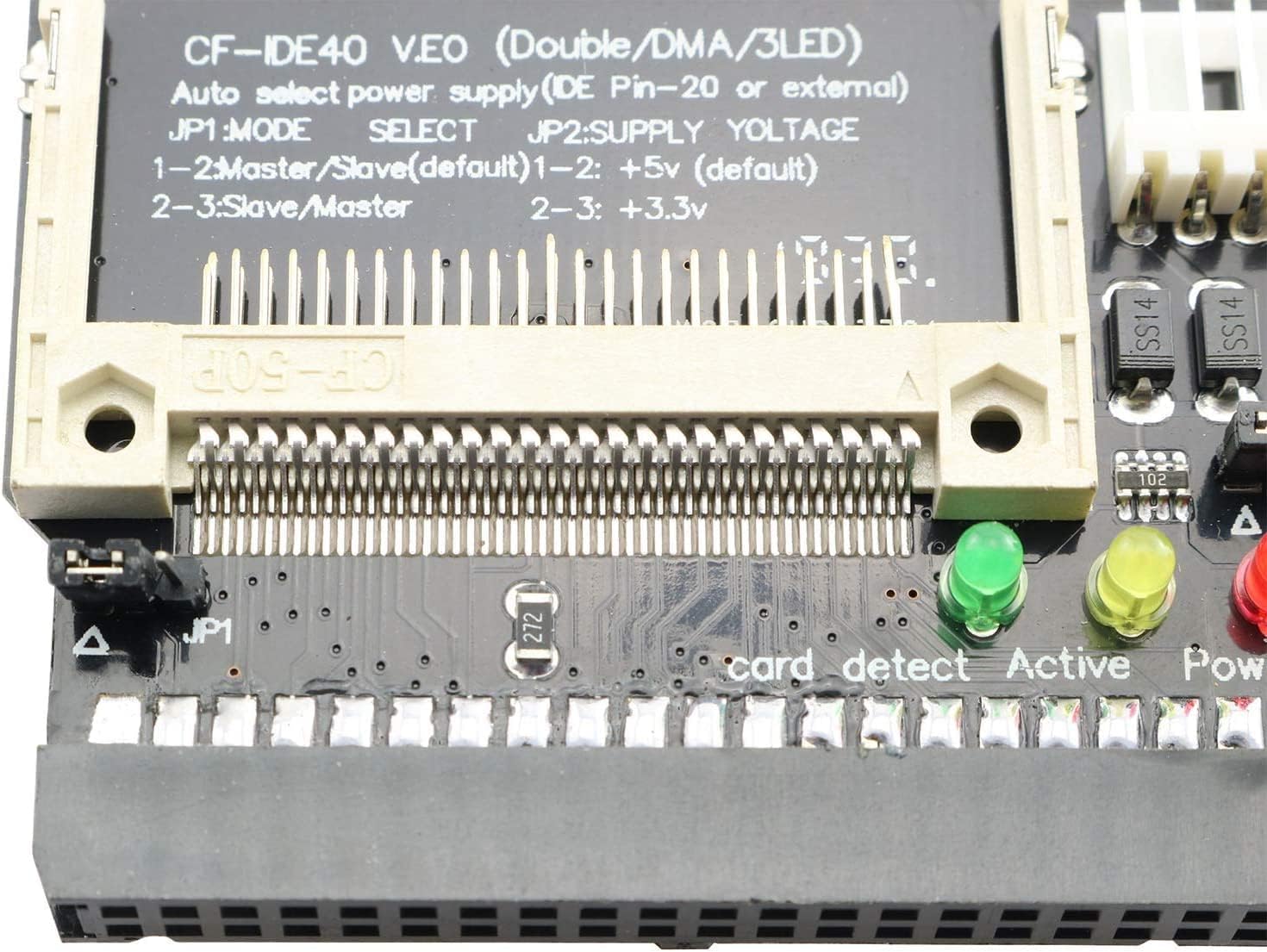

TAODAN CF to 40-Pin IDE Adapter Compact Flash CF to IDE Bootable Converter

Size: 70x63x0.8mm Support CF card when IDE hard disk boot. CF is an electronic hard disk that is in principle completely different from mechanical hard disks and is not easily damaged in these cases. Portable instruments that use embedded X86 or RISC cores usually have an IDE interface. If the CF card cannot be directly connected to these instruments, you can use this adapter to complete the transfer. Personal computers (PCs): These computers are usually X86 kernels. This is the main platform for the card. Some digital cameras have a CF card interface, which you can pass on your desktop. This card accesses your image data. Turn your CF card into a standard IDE electronic hard disk, and install the Linux, Win98, DOS and other operating systems in the electronic hard disk to experience the high-speed pleasure of the electronic hard disk. Industrial PCs use this card with CF card for storing embedded operating system like embedded LINUX or WIN CE. You can also use CF as a mobile hard disk, so the data can be moved at will. This card does not have a power extension cable. Power supply from 5.0V or 3.3V: Select the appropriate supply voltage according to your CF card. Power indicator and Cf card read/write indicator +3.3V or +5V CF card voltage optional jumper.

• Supports CF-I and CF-II two types of cards: IBM micro hard disk that also supports CF-II interface.
• The IDE interface is a 40-pin/2.54mm female connector:this card can be plugged directly into the IDE socket.
• Standard IDE interface: true-IDE mode, and supports DMA-33 transfer mode.Power supply from 5.0V or 3.3V,Select the appropriate supply voltage according to your CF card.
• Widely used in notebook computers, personal digital assistants (PDAs), portable instruments, or industrial equipment.
• Package included:1pcs CF to 40-Pin IDE Adapter.It has the characteristics of low power consumption, no noise and no damage.
